Compatible Matter, Alexa, Apple Homekit, Google Home, Home Assistant, Samsung SmartThings
WiFi 2.4 Ghz
Design and technology 100% Made in Italy

Designed and manufactured by Freedompro

LB0104-C WiFi Switch, Controls 4 Smart Lights, 12 V 5 A Power Supply, DIN Module for Junction Box

€74,90
Tax included. Shipping calculated at checkout.
4.19
Color: DIN 4 Lights 12 V 5 A

Freedompro LB0104-C is a WiFi relay switch designed for DIN rail mounting, created to transform your home’s lighting into an intelligent, efficient, and fully automated system. Installed in the junction box, this 12 V 5 A per channel WiFi module allows you to manage up to 4 lights, spotlights, lamps, or ceiling lights simultaneously, with full remote control.

The LB0104-C is a Smart WiFi DIN switch module for controlling 4 lights, certified by Matter, offering unprecedented compatibility and ensuring seamless integration with major Smart ecosystems and voice assistants like Amazon Alexa, Google Home, Apple HomeKit, Home Assistant, Honey Pro, and many more—without the need for additional hubs.

With remote control via the Freedompro Home App, you can schedule the turning on and off of lights and monitor the consumption of each individual bulb, optimizing your lighting management, reducing energy waste, and improving home comfort.

Easy to install and incredibly powerful, the Freedompro LB0104-C is the ideal solution for anyone looking for a reliable, secure, and future-ready WiFi DIN rail light switch relay for their Smart Home.
Secure payment and shipping in 24/48 hours
American Express
Apple Pay
Google Pay
Maestro
Mastercard
PayPal
Shop Pay
Union Pay
Visa
Free shipping for orders over €79.90
Estimate shipping

LB0104-C Freedompro, Smart WiFi Relay Switch DIN Module for Controlling 4 Lights: Smart Home Without Compromise



Transform your home’s lighting with the LB0104-C Freedompro, a WiFi DIN rail switch designed to make your lighting system smart, automated, and connected. Installed directly in the junction box and powered by 12 V, it allows you to manage 4 light points, including spotlights, ceiling lights, lamps, and LED strips, offering maximum efficiency and full control wherever you are.



Advanced Features for Smart Lighting The LB0104-C is compatible with traditional switches, meaning you don't need to replace buttons or modify your existing electrical system. This makes it a practical and immediate solution for those looking to integrate home automation without invasive interventions.



The device allows you to control 4 lights, with a maximum power of 5 A per channel (20 A total), ensuring flexible and customizable lighting management.



Matter Certified Certified by Matter, the most advanced standard for smart homes, it ensures maximum compatibility with major voice assistants and Smart Home ecosystems, including Amazon Alexa, Google Home, Apple HomeKit, Home Assistant, Samsung SmartThings, Honey Pro, and many others, with no need for additional hubs.



Lighting management can be done remotely via WiFi through the Freedompro Home App or directly with voice commands, offering simple and immediate control from anywhere.



Advanced Automation for Energy Efficiency Thanks to advanced automation, you can schedule the on/off times for lights based on your preferred schedules and create personalized scenarios for every need, improving comfort and optimizing energy consumption.



The LB0104-C also integrates a power consumption monitoring feature, allowing you to track the energy used by each light point, helping to reduce waste and optimize lighting system management.



No Hub Required Unlike other solutions on the market, this WiFi switch operates independently and does not require an external hub. Simply connect to a 2.4 GHz WiFi network to start controlling your lights smartly right away.



An Innovative Choice for Effortless Home Automation LB0104-C Freedompro is the ideal WiFi switch for those who want connected, automated lighting without compromising on ease of use. Installation is fast and intuitive, while compatibility with the most common ecosystems ensures perfect integration with the rest of your smart home. Thanks to advanced technology and 100% Made in Italy design, it offers reliability, quality, and security for a seamless home automation experience.

📌 Dimensions: L 33 x W 36 x H 90 mm

📌 Weight: 92 g

📌 Installation type: Junction Box

📌 Power supply: 12-24 V +5% -15% DC

📌 Maximum current: 20 A, max. 5 A per channel

📌 Connectivity: WiFi 2.4 GHz + Bluetooth

📌 Power sensor: Yes

📌 Temperature sensor: No

📌 Maximum device power consumption: < 2.5 W

📌 Wi-Fi protocol: IEEE 802.11 b/g/n

📌 Radio output power: < 5 dBm

📌 Radio band: 2400-2483.5 MHz

📌 Operating temperature: -5 °C to +45 °C

📌 Range: Up to 50 m outdoors; up to 30 m indoors

📌 Conductor section: 0.2 to 2.5 mm² / 24 to 12 AWG

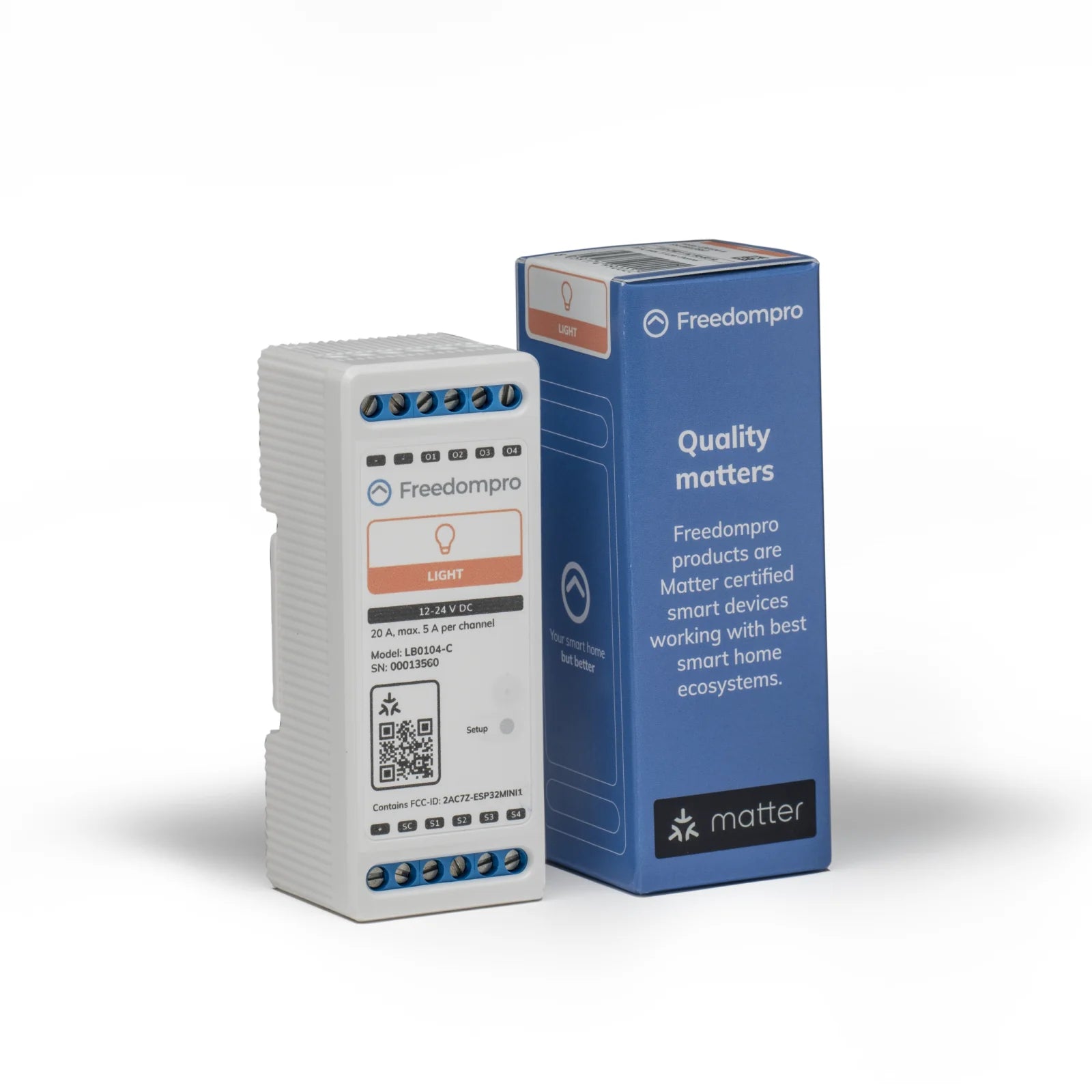

In the package you will receive, you will find:

- Smart WiFi DIN Switch Module LB0104-C for controlling 4 lights

- Instruction and installation manual

- Spare QR Code sticker for pairing the WiFi module with the Freedompro Home App

How to install the WiFi Module

To correctly install the Freedompro LB0104-C Smart WiFi Switch Module, follow these steps:

⚠️ Before you begin:
- Turn off the power to the system by switching off the main circuit breaker in the electrical panel.

1️⃣ Position the module

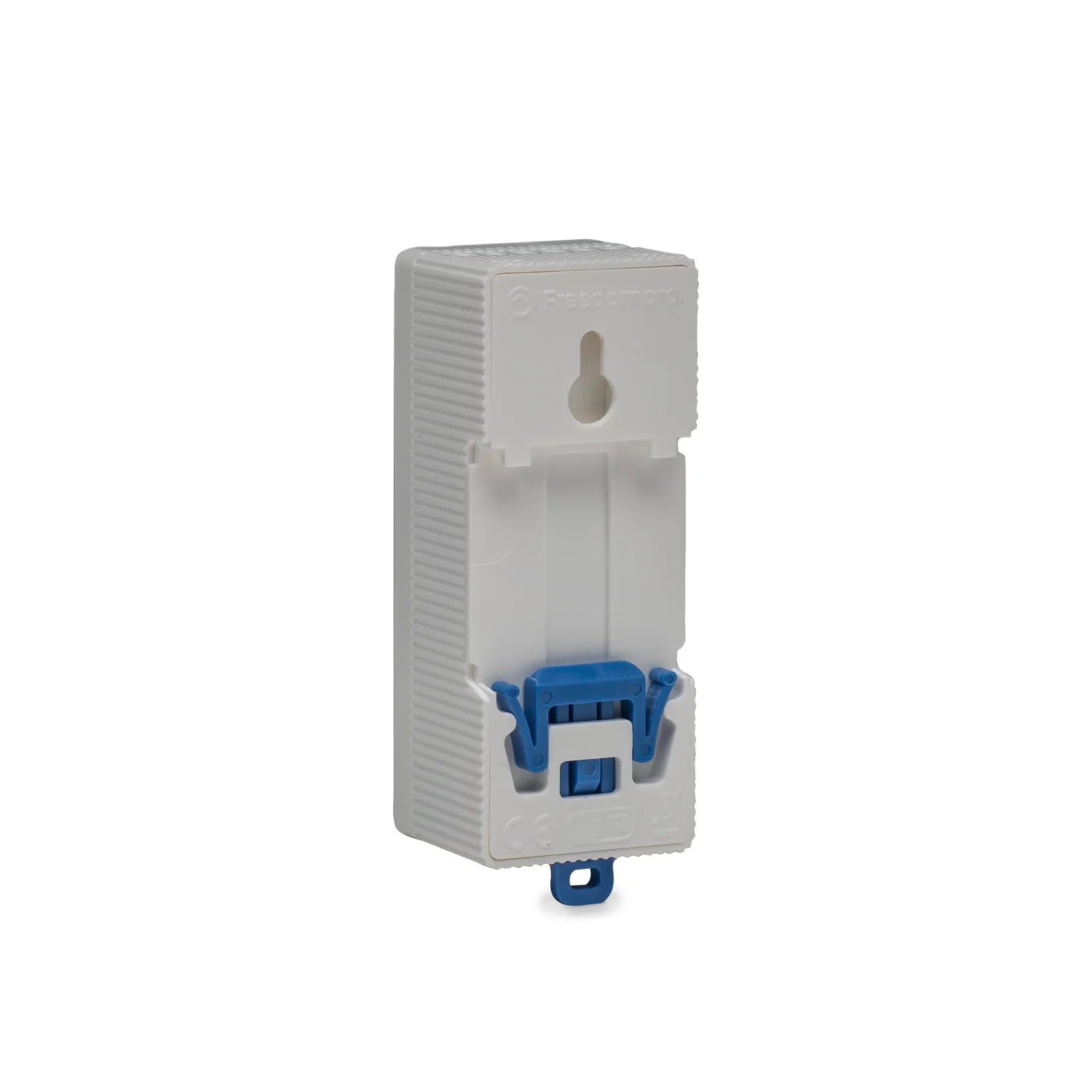

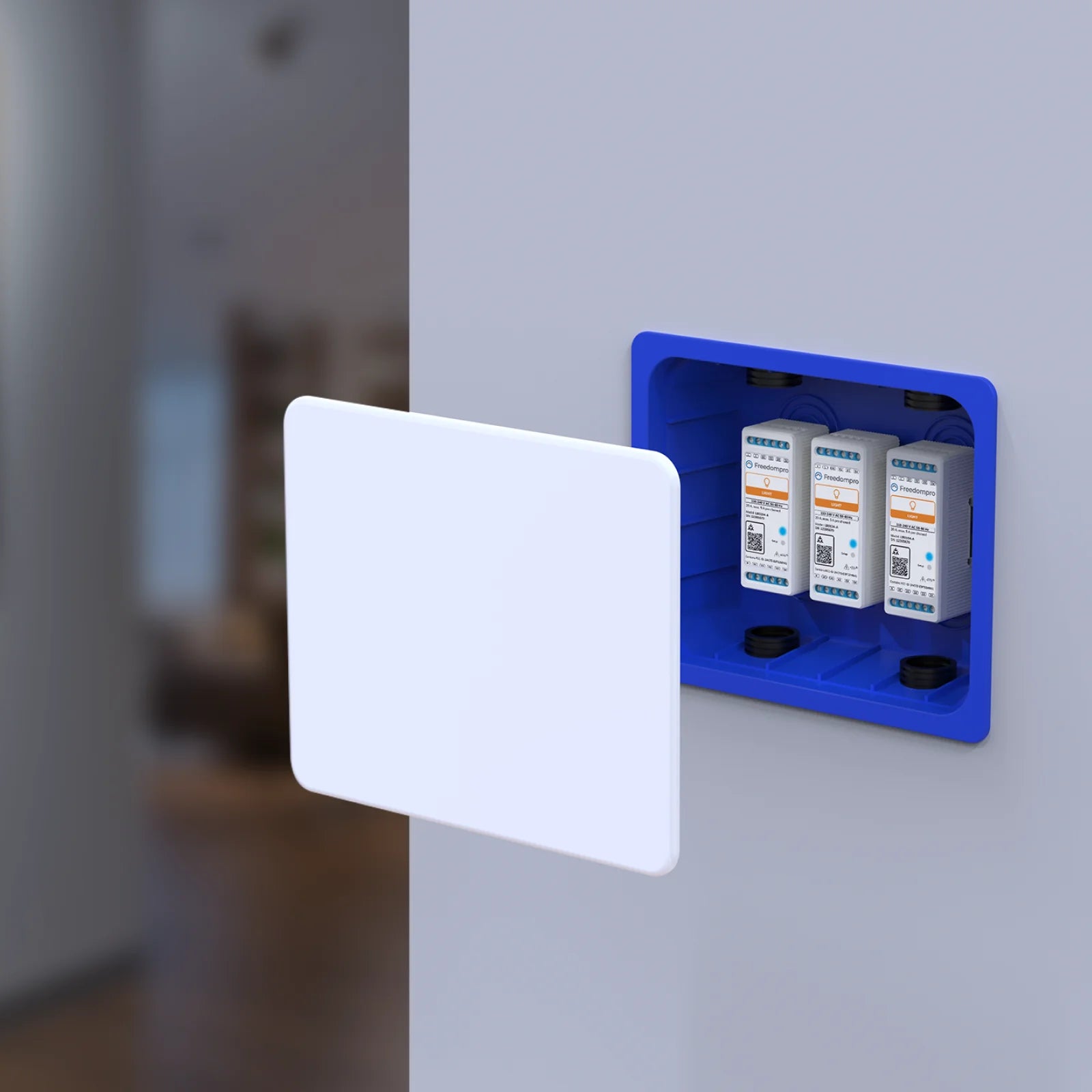

- Install the Freedompro LB0104-C module on a DIN rail inside the junction box.

2️⃣ Connect the power cables
- Connect the positive power cable (+) to the + terminal of the module.
- Connect the negative power cable (-) to the - terminal of the module.

3️⃣ Connect the outputs to the lights
- Connect the first load (e.g., a light bulb or group of lights) to terminal O1.
- Connect the second load to terminal O2.
- Connect the third load to terminal O3.
- Connect the fourth load to terminal O4.

4️⃣ Connect the buttons or switches
- Connect the first button or switch to terminal S1 to control the load on O1.
- Connect the second button or switch to terminal S2 to control the load on O2.
- Connect the third button or switch to terminal S3 to control the load on O3.
- Connect the fourth button or switch to terminal S4 to control the load on O4.
- Use terminal SC as the common output for manual controls.

5️⃣ Check the connections
- Make sure that all cables are correctly connected and securely fastened.
- Ensure the wiring diagram is followed.

6️⃣ Restore power Once the wiring is complete, restore the power to the system at the electrical panel.

🔵 Module status The module's status LED will blink blue, indicating it is ready for configuration.

🔗 Smart configuration The Freedompro LB0104-C Smart WiFi module is now installed and ready to be configured through the Freedompro Home App or compatible Smart Home platforms.

Terminals

O1 = Output terminal of load circuit 1
O2 = Output terminal of load circuit 2
O3 = Output terminal of load circuit 3
O4 = Output terminal of load circuit 4
S1 = Input terminal for control line O1
S2 = Input terminal for control line O2
S3 = Input terminal for control line O3
S4 = Input terminal for control line O4
SC = Common output terminal of the switch
- = Negative terminal
+ = Positive terminal
